My attempt at 3D printing racks (2 Viewers)

[Sparkynutz]

View attachment 1170969

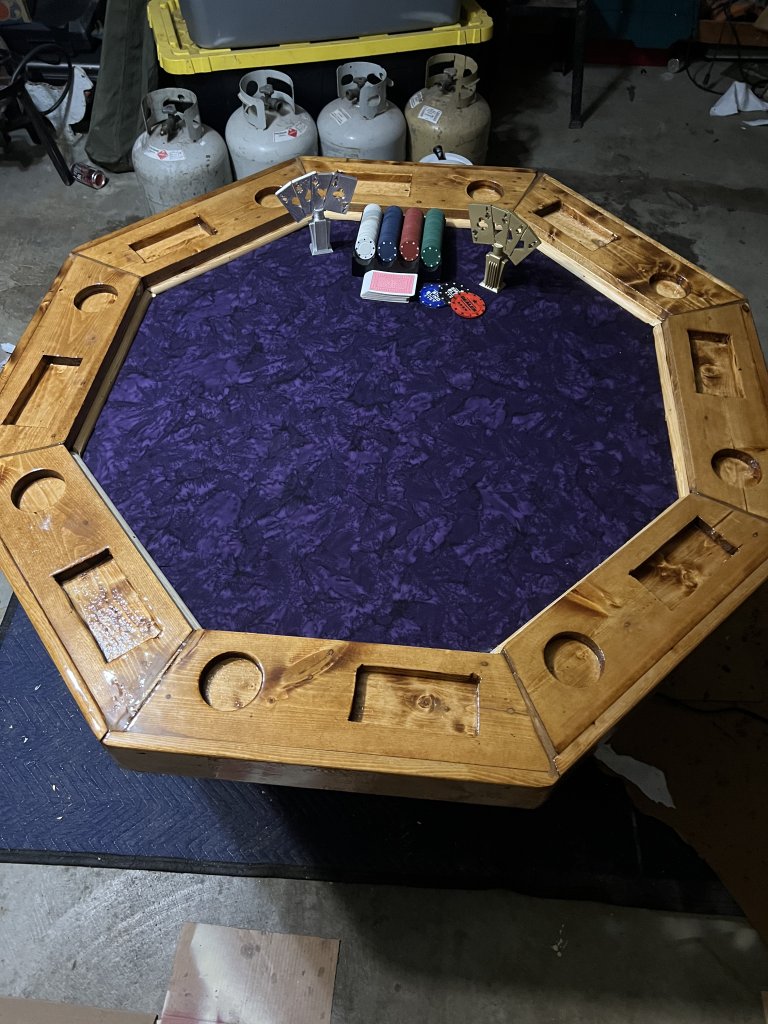

Trophies, chip holder, blind buttons 3D printed

Willing to share stls?



[allforcharity]

You're better off just buying a traditionally made roulette wheel instead of trying to print one.

That's what I meant.



[springbox]

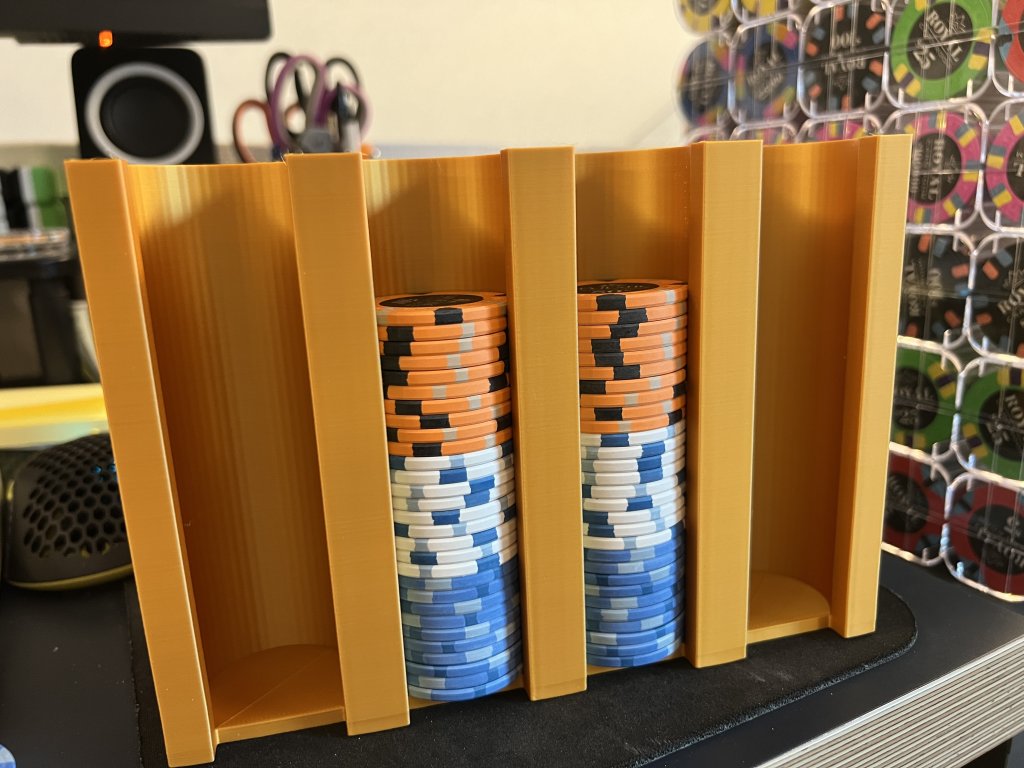

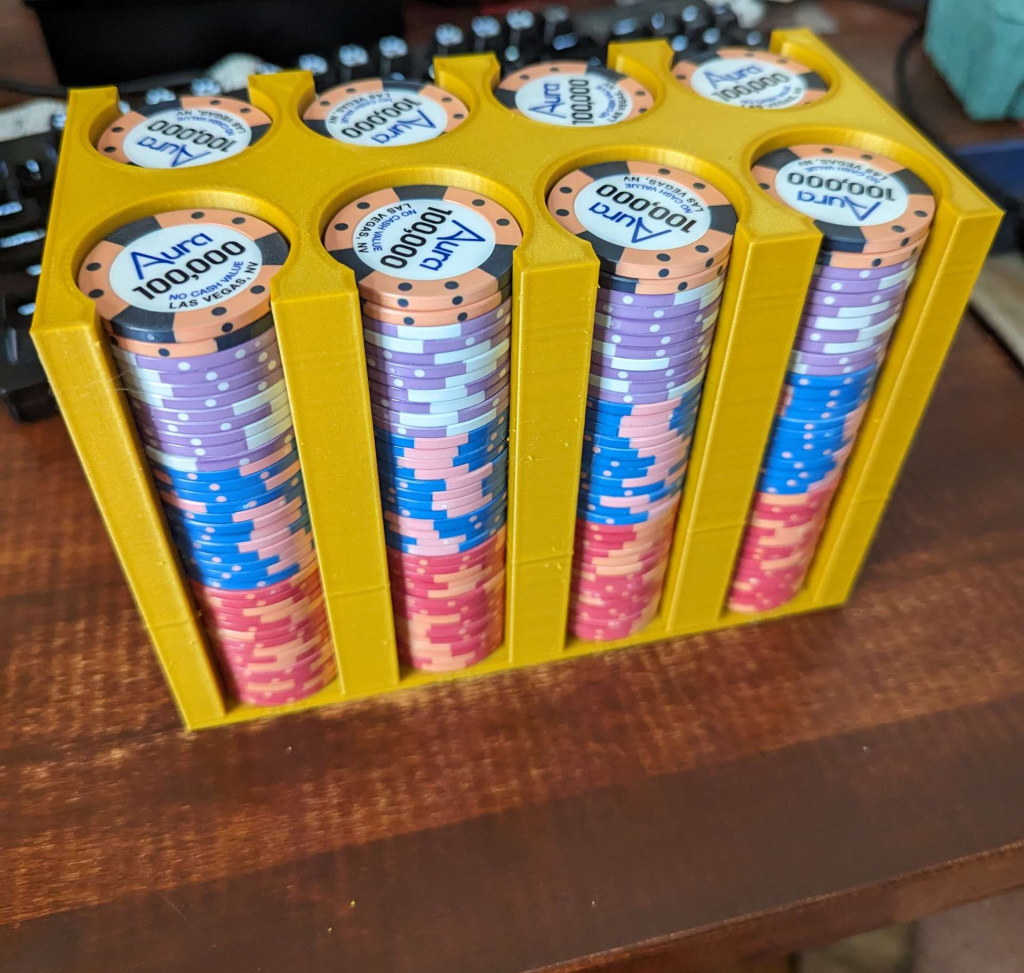

3d printed a single table tournament starting stack holder. This thing took forever haha.



[ThrowBack]

3d printed a single table tournament starting stack holder. This thing took forever haha.

Can you pm a link to the STL file? I’d love to print these



[ThrowBack]

Willing to share stls?

https://www.thingiverse.com/thing:1859599

I’m having trouble finding them but they were all got here

I’ll see if I can find them on the computer



[springbox]

Can you pm a link to the STL file? I’d love to print these

Can do when I get home, probably tomorrow. It's sized for 38 chips high.



[springbox]

Can you pm a link to the STL file? I’d love to print these

Hopefully this works, haven't uploaded anything here before.

https://www.thingiverse.com/thing:6146876



[TheOffalo]

3d printed a single table tournament starting stack holder. This thing took forever haha.

I recognize those chips!



[theT1NM4N]

These look great!! I'll have to get my printers spitting a few of these out!



[ThrowBack]

Hopefully this works, haven't uploaded anything here before.

https://www.thingiverse.com/thing:6146876

Thanks

Perfect for our cash stacks



[springbox]

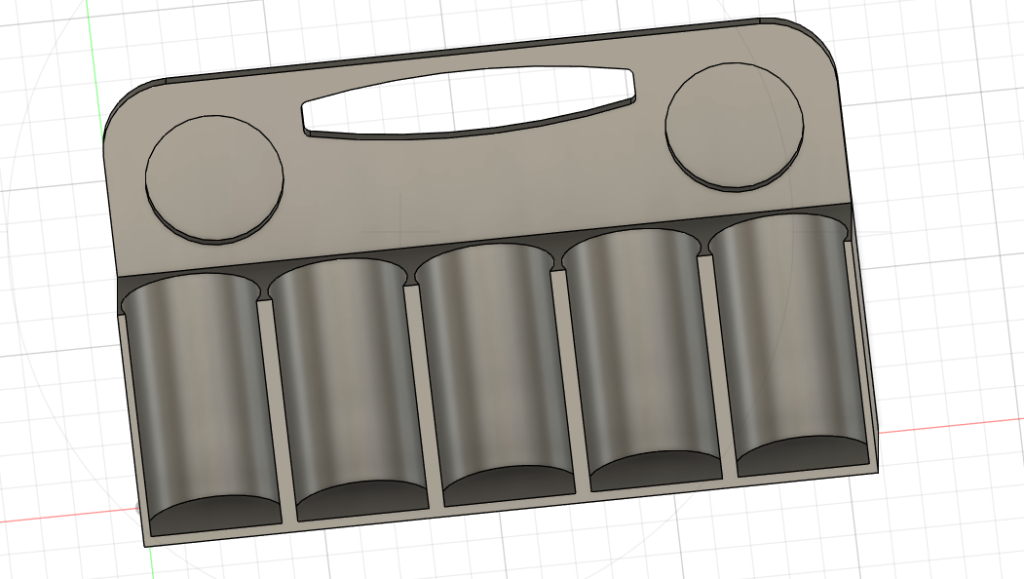

Tried recreating the poker chip rack display I've seen people post on the forum a few times. It's made so that the barrels need to be removed or inserted from the top. The tolerances are guesswork, I have the inlaid chip slots at 39.4mm which may or may not fit a chip snugly depending on the printer. The barrels are 40mm in diameter and 68mm high so they should comfortably fit 20 39mm chips.

I haven't printed this yet, so beware if you try.

https://www.thingiverse.com/thing:6635467



[gforce]

I love this idea! Thanks for the idea and the information.



[doriondo]

Hopefully this works, haven't uploaded anything here before.

https://www.thingiverse.com/thing:6146876

Had to increase x and y to 1mm more to work with Apache clays, but otherwise works great!



[springbox]

Had to increase x and y to 1mm more to work with Apache clays, but otherwise works great!

Nice, I'd love to see a pic if it prints well.



[doriondo]

Nice, I'd love to see a pic if it prints well.

Sorry, I was talking about the 1st stl you posted. I can test out the 2nd one and will post later.



[springbox]

Sorry, I was talking about the 1st stl you posted. I can test out the 2nd one and will post later.

Woops lol, apologies in advance if it's a waste of plastic.



[doriondo]

Woops lol, apologies in advance if it's a waste of plastic.

No waste at all. It could just be the filament I used or the printer that caused the cylinder to tighten up.



[doriondo]

Woops lol, apologies in advance if it's a waste of plastic.

That 1mm adjustment did it. Apache clays fit now. Thanks again for the file!



[doriondo]

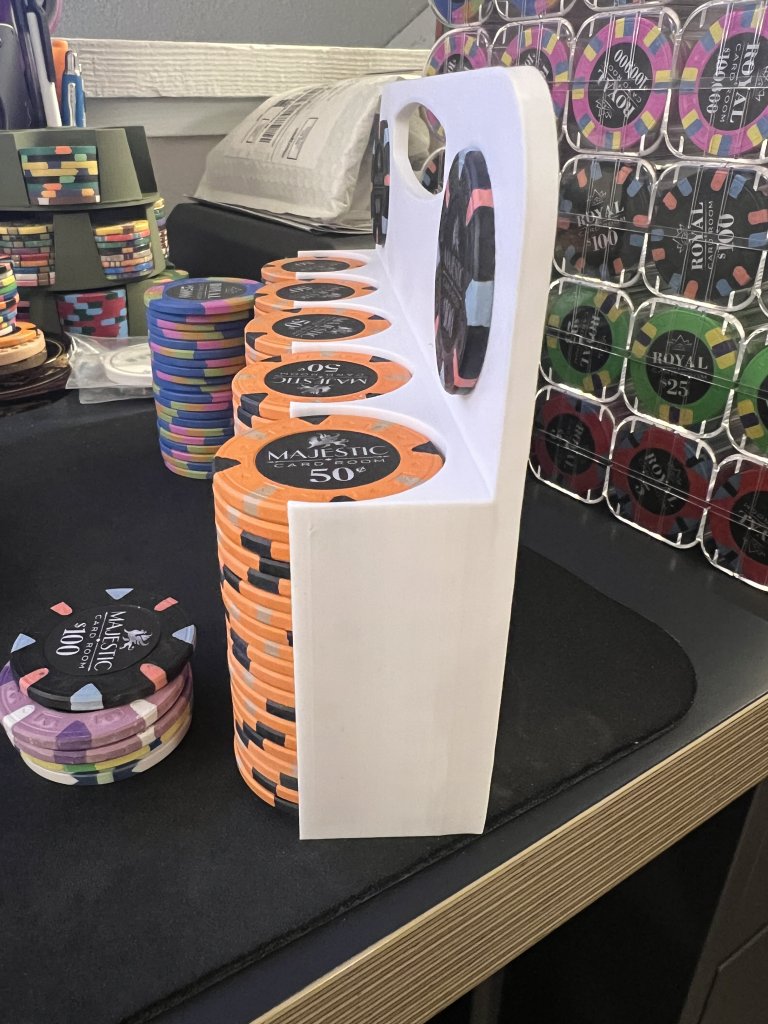

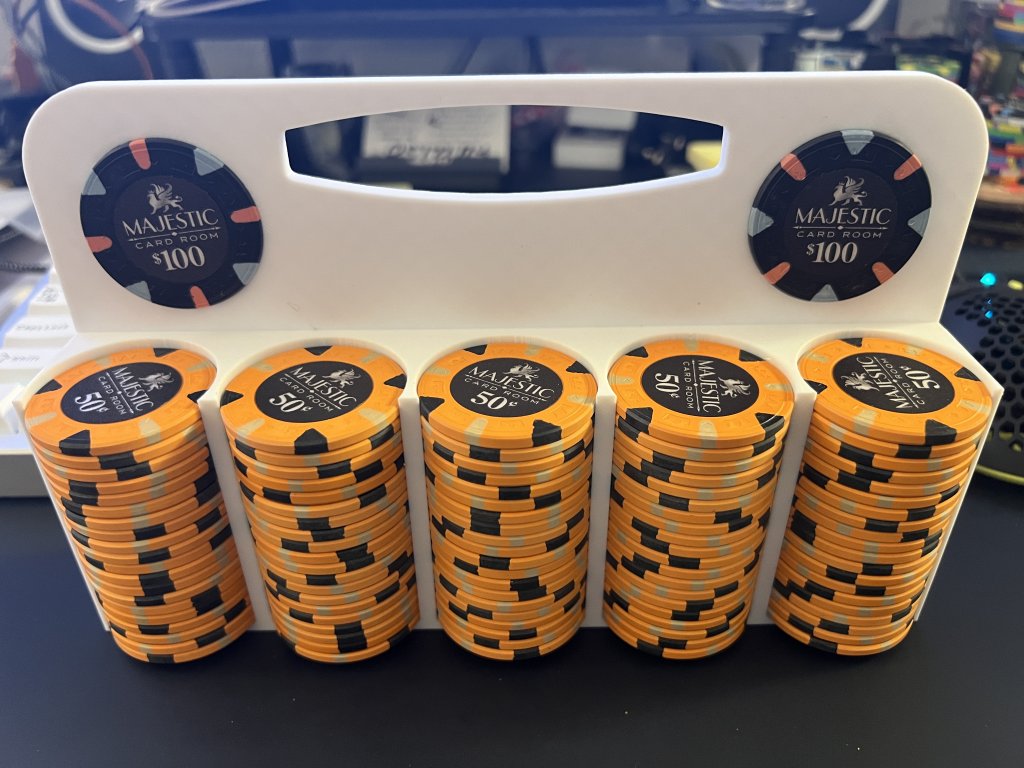

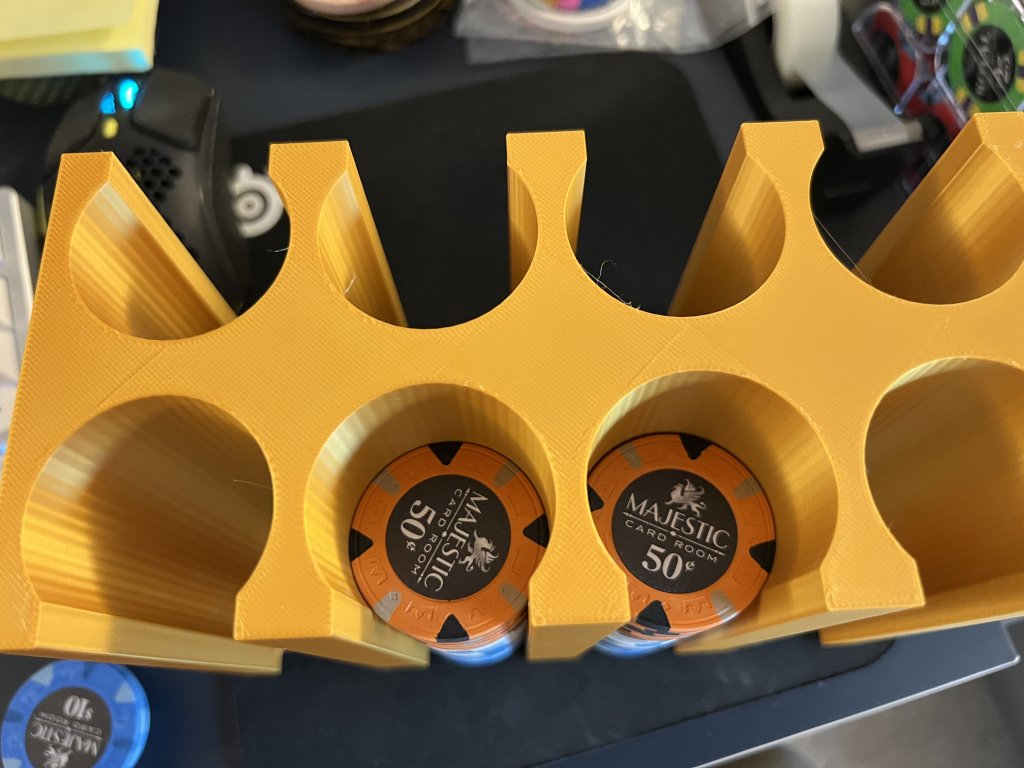

Here's the other file you posted. Again just a 1mm adjustment to allow me to use Apache clays.



[springbox]

Looks great! Seems like I shoulda made the top recess a little deeper.



[doriondo]

Looks great! Seems like I shoulda made the top recess a little deeper.

yeah that majestic chip just doesnt fit, but thats probably because the size increase with apache clays. I tried CPC and BR Pro ceramics and they both sit well. CPC is snug while BRP spins and doesnt stay put in the holder, but the depth looks good.



[Sparkynutz]

Adding a through hole in the center of top chip recess may make removing easier if snug.
Another idea is to make a few ridges inside for less contact area and a tiny bit of squish for fitting a larger range of diameters.



[Seven2Wizard]

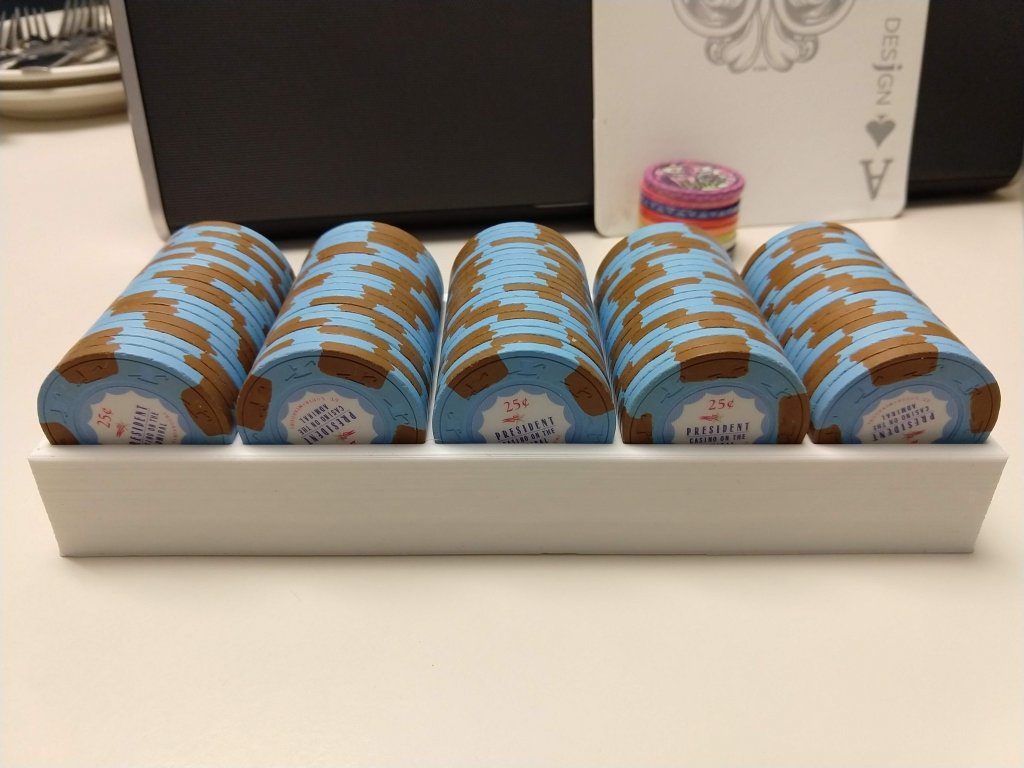

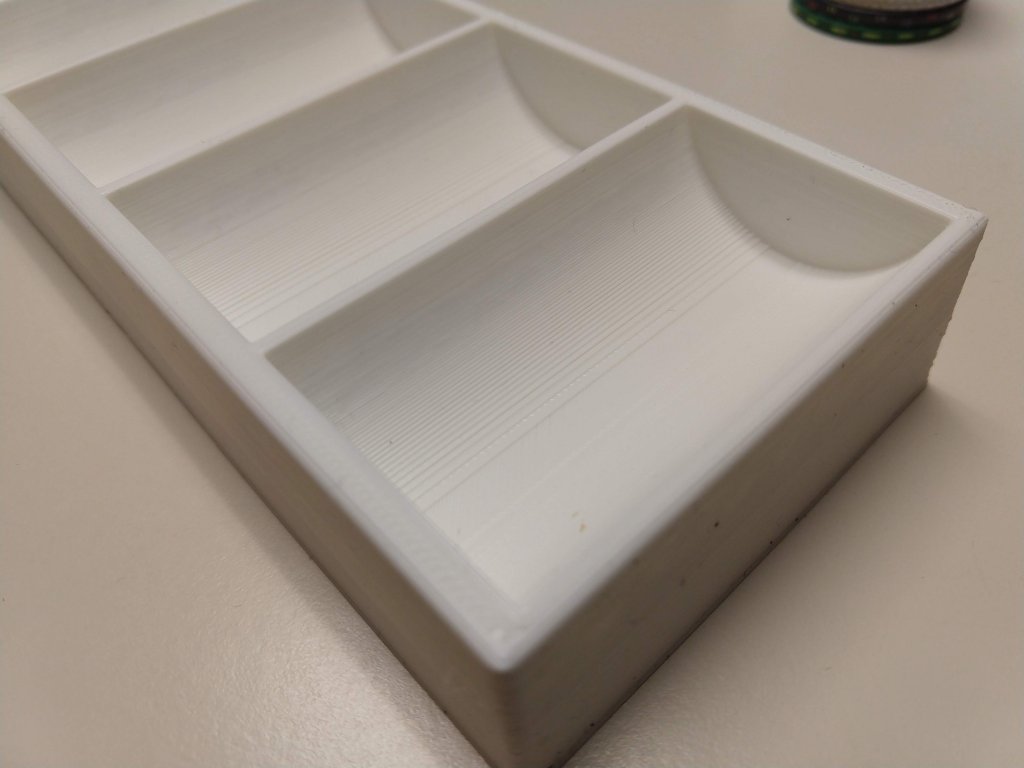

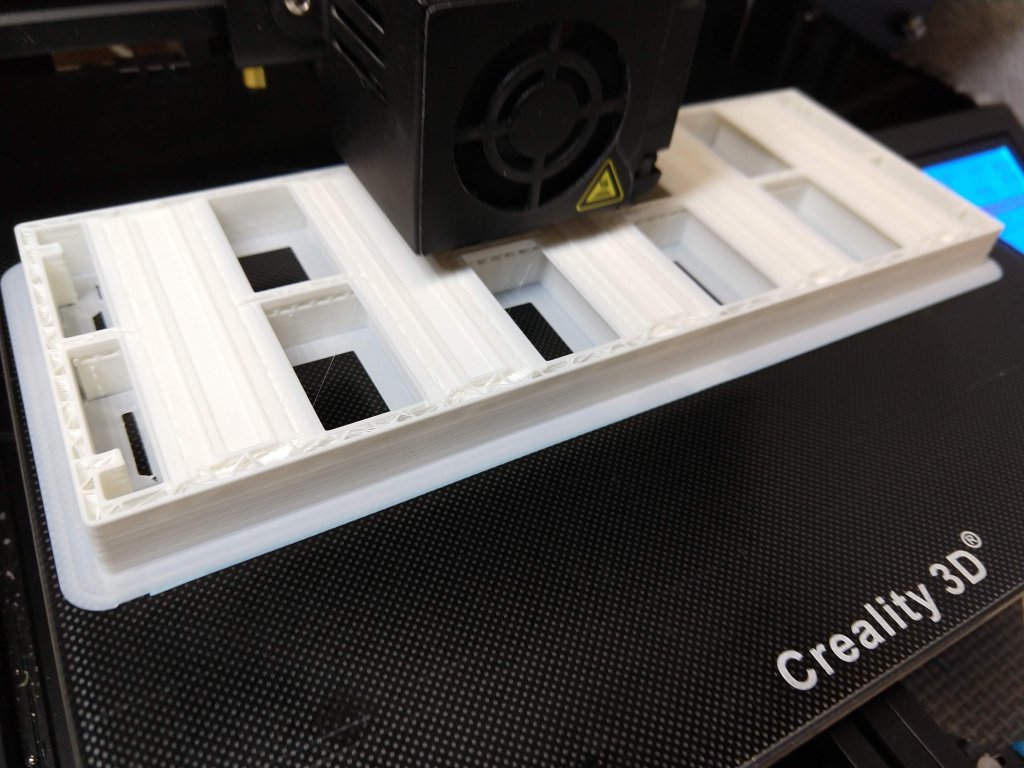

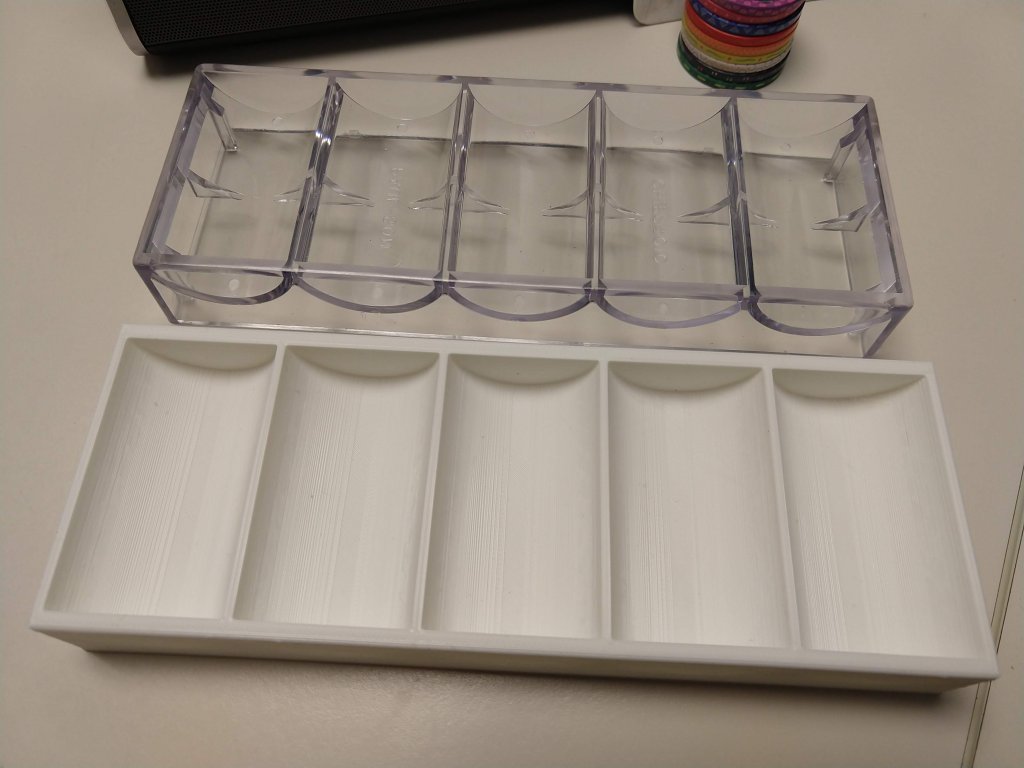

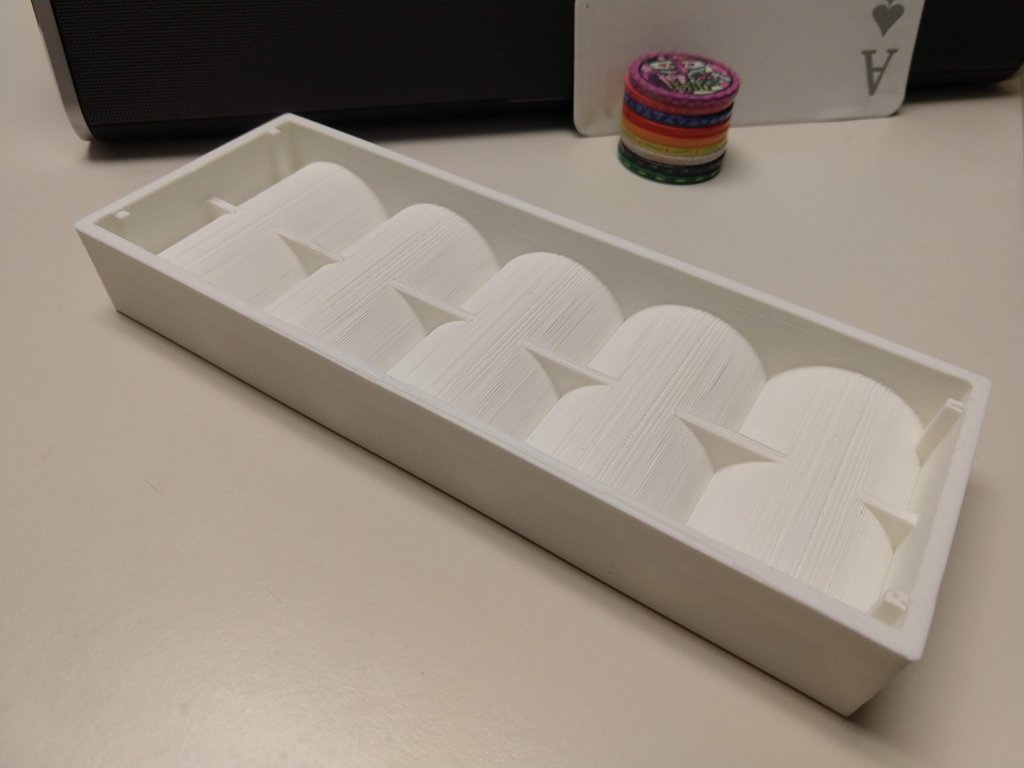

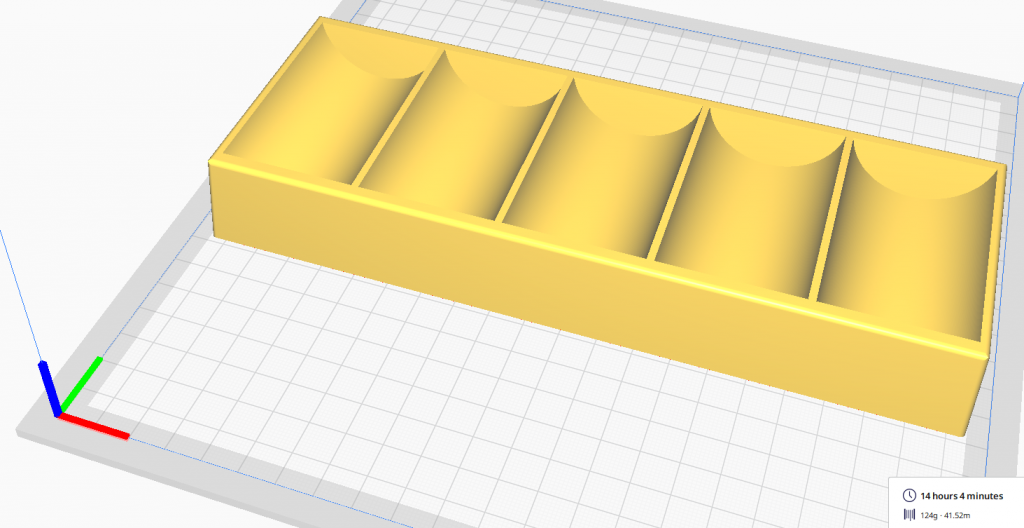

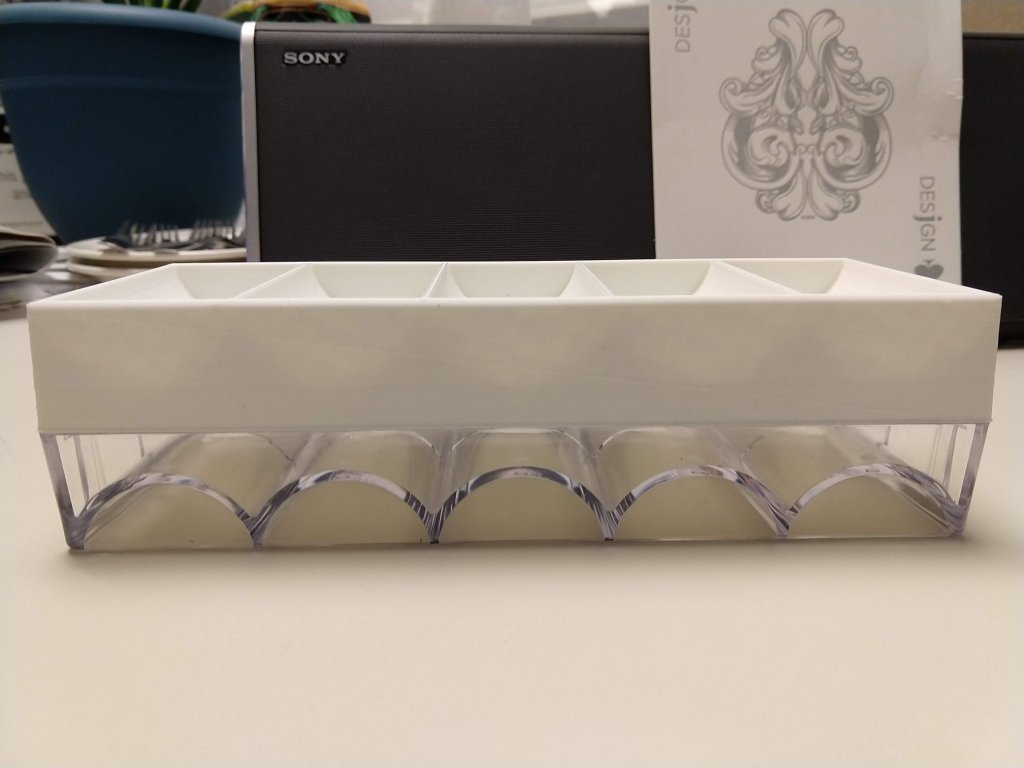

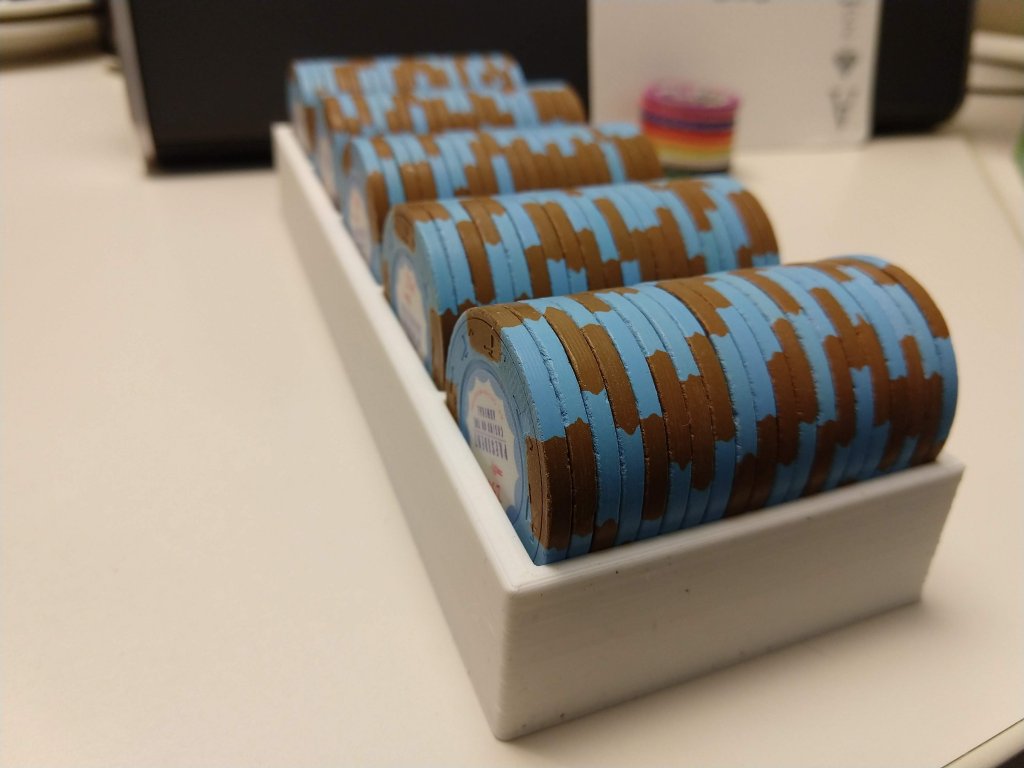

My latest 3D printer project is to make some racks. One of my goals is to print some custom-sized racks that will hold my 8V china clays that are too tall for normal racks. But to start with, I decided to model a copy of the Paulson rack as closely as I could. It was a good project to learn some new 3D modeling software, and it took me longer than I expected, but I'm happy with the result. I still need to do a few tweaks to the model, but I made a rough prototype print and the results are good. Here are some pictures. Keep in mind that this print is at very low quality to make it faster. Next I'm going to do a nicer print with a smaller layer height, so all the curves will be much smoother.

The chips fit nice and snug!

View attachment 380950View attachment 380951View attachment 380952View attachment 380953View attachment 380954View attachment 380955View attachment 380956View attachment 380957

Looks great!



[Nickamas]

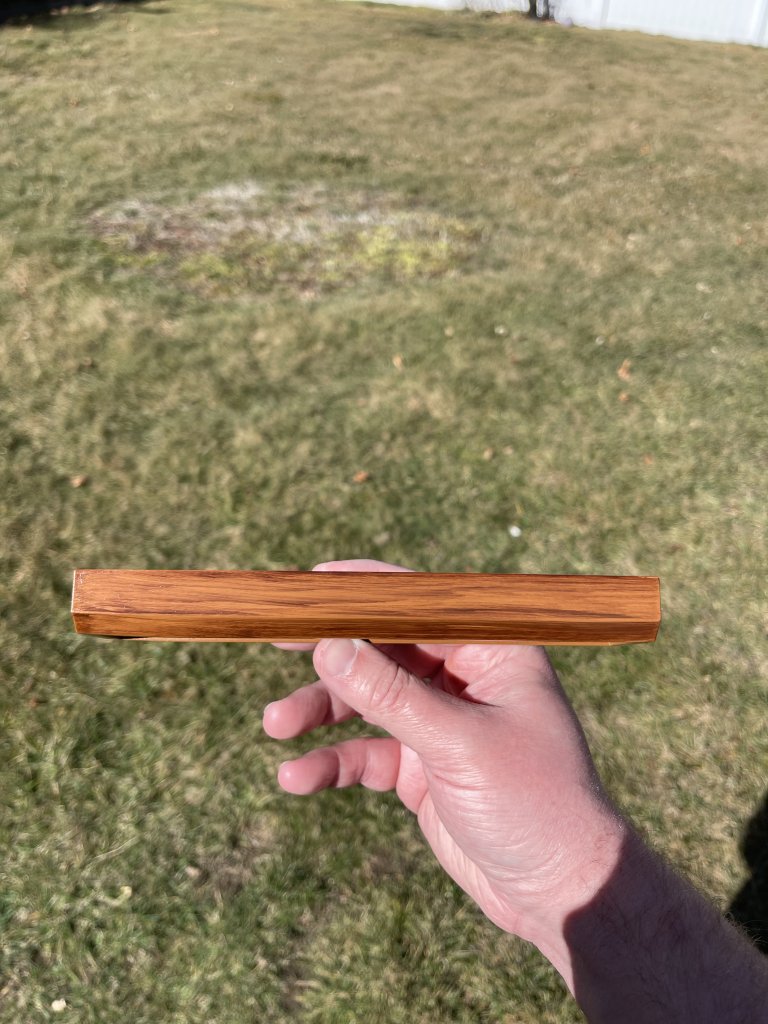

I played around with 3d printing chip racks for a little bit. Specifically I was interested in making them look like wood.

Here is the side view of one of the last racks I did. I was pretty happy but still needs some improvement.



[springbox]

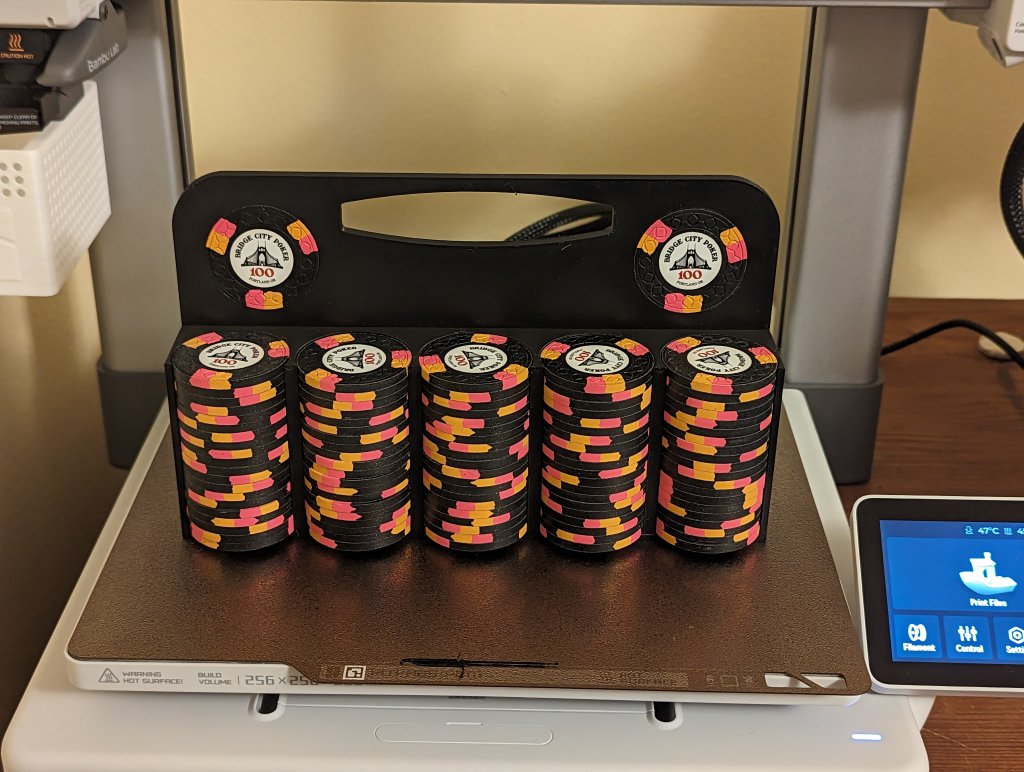

New printer, now I can actually test out my designs. CPCs are very differently sized to Paulsons, 39.7mm gave me a nice snug fit for CPCs but way too loose for Paulsons.



[doriondo]

New printer, now I can actually test out my designs. CPCs are very differently sized to Paulsons, 39.7mm gave me a nice snug fit for CPCs but way too loose for Paulsons.

View attachment 1350329

nice A1! Enjoy your future successful prints!



[springbox]

nice A1! Enjoy your future successful prints!

Oh, I am. I've already done nearly a dozen prints with no failures and all I'm using is the default profiles. Before I probably had 1/2 to 3/4 of my prints fail (mostly on the very first layer, but obnoxiously sometimes halfway through) Works like a dream so far. Loving the AMS, even for single color prints not having to switch the filament between prints myself is great.



[doriondo]

Oh, I am. I've already done nearly a dozen prints with no failures and all I'm using is the default profiles. Before I probably had 1/2 to 3/4 of my prints fail (mostly on the very first layer, but obnoxiously sometimes halfway through) Works like a dream so far. Loving the AMS, even for single color prints not having to switch the filament between prints myself is great.

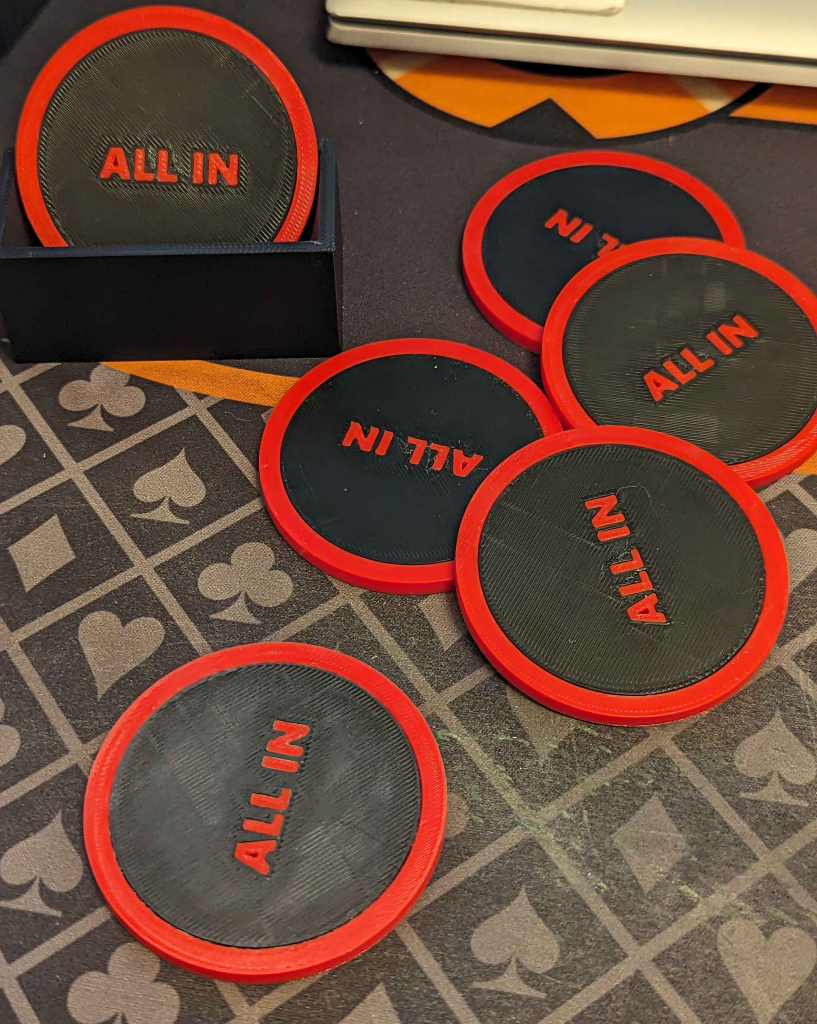

View attachment 1350473

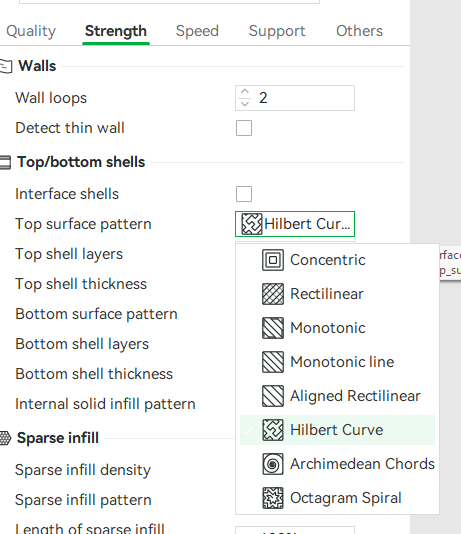

Are the "ALL IN" text only on one side or both sides? If only on one side try printing with the words facing down on the plate, it will come out cleaner. If you are printing the words on both sides try changing the setting of TOP SURFACE PATTERN to Hilbert Curve (I dont know if that option is available on the A1). It should make the surface of the print comparable to the bottom of the print.



[springbox]

One side only. The plate I got was textured so that might not be the best option, but I'll try out the curve settings. Still learning.



[doriondo]

One side only. The plate I got was textured so that might not be the best option, but I'll try out the curve settings. Still learning.

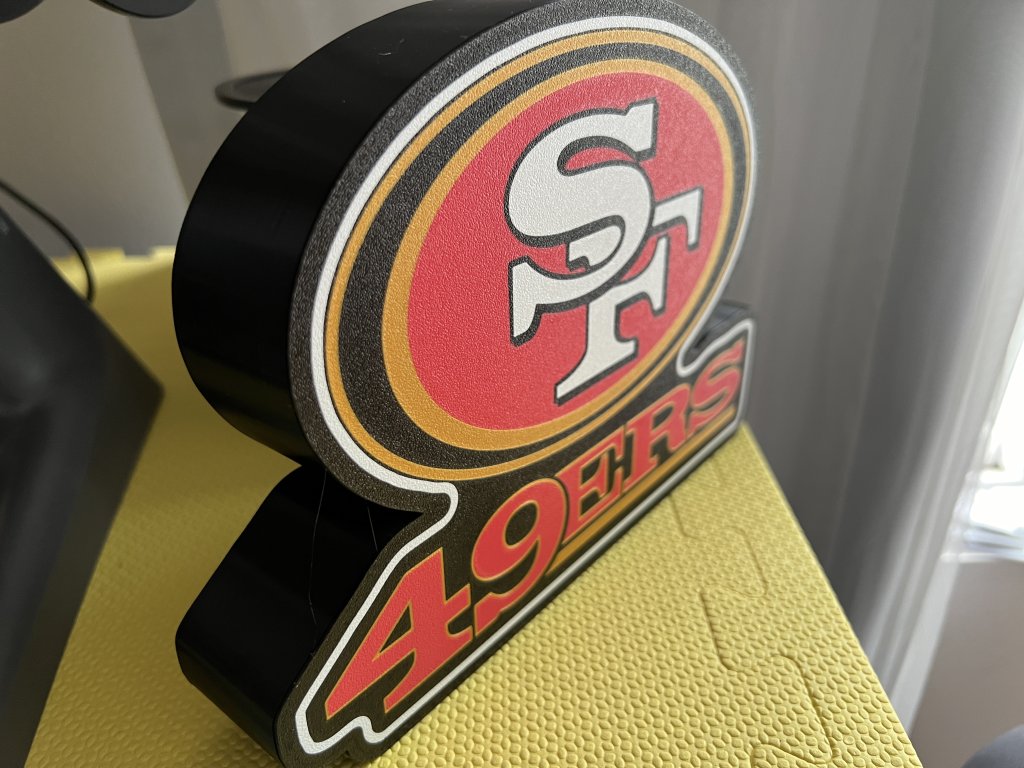

The textured is actually perfect. Try it and you will be amazed how clean the print is. I printed this faced down on a textured plate using an A1 and look how it turned out.
