A Raised Rail Build - Double Ring Design? [March ...delayed] (1 Viewer)

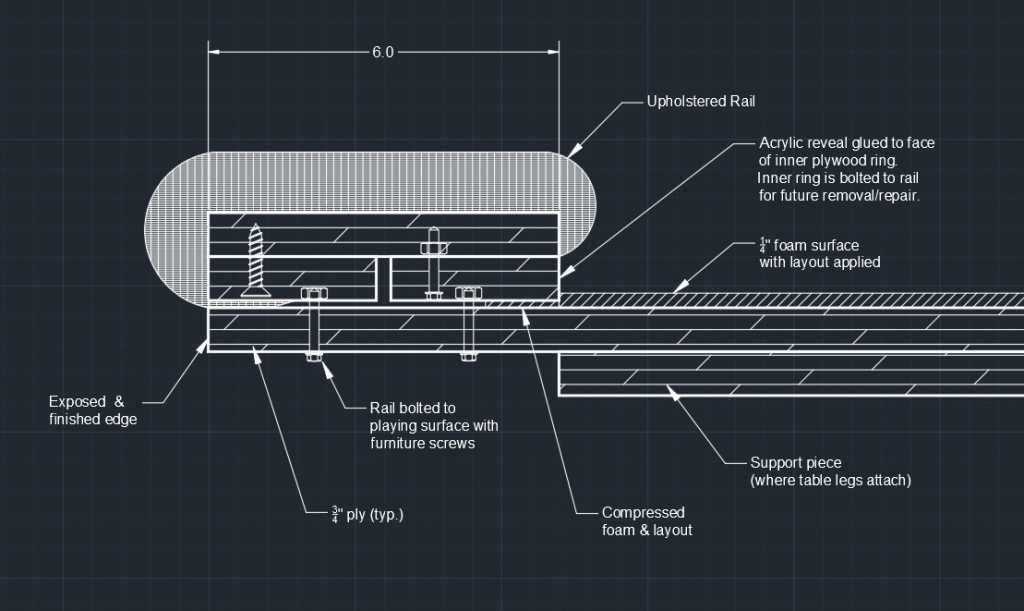

Updated the rail detail with a more accurate depiction of dimensions (for the spacer rails), and placement of screws/bolts for final assembly. Although the nuts represent threaded inserts that will go in top surfaces (not bottom surfaces as shown)...

View attachment 494778

Please show more pics when adding threaded inserts! Thanks :)

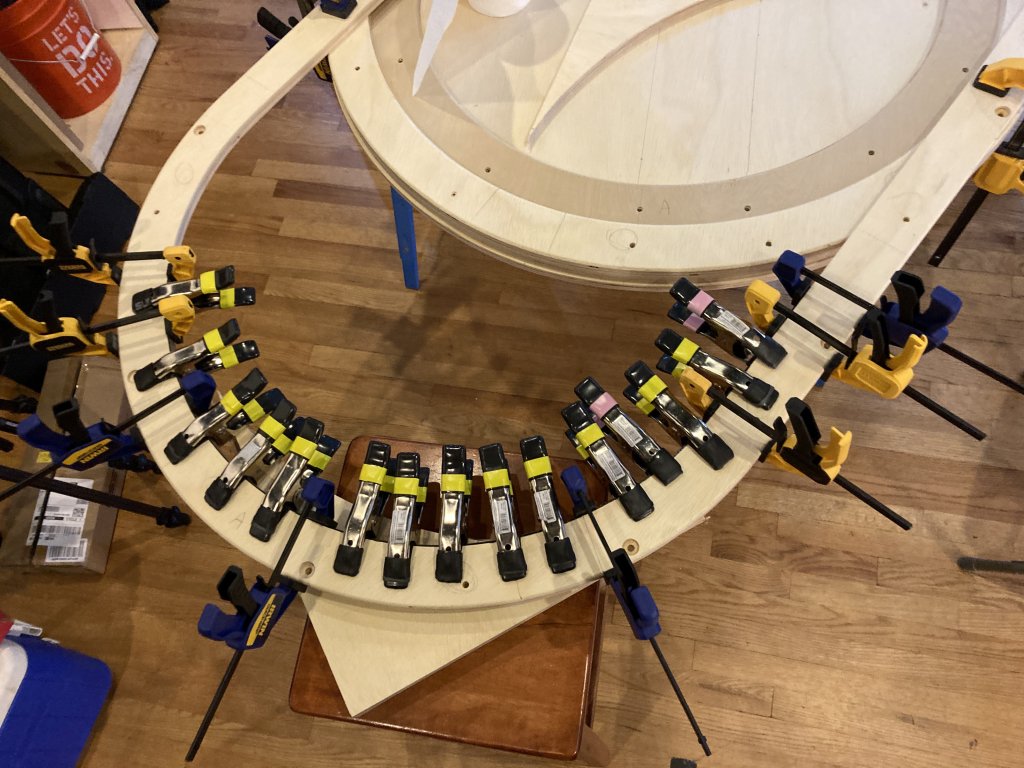

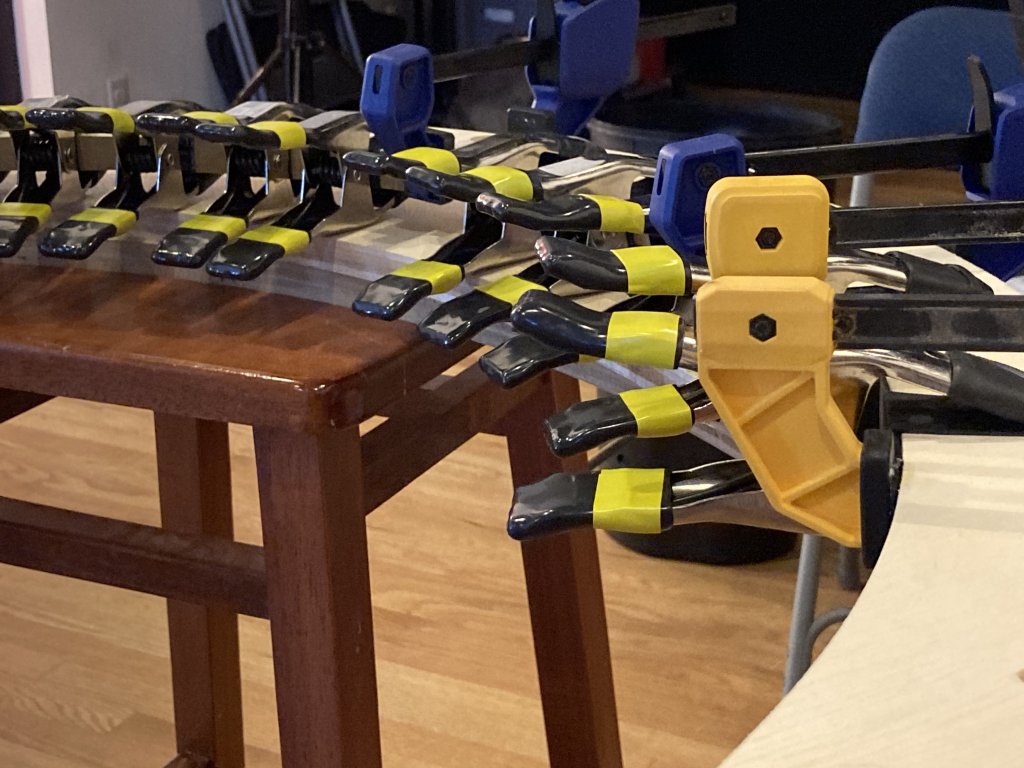

Still clamping.

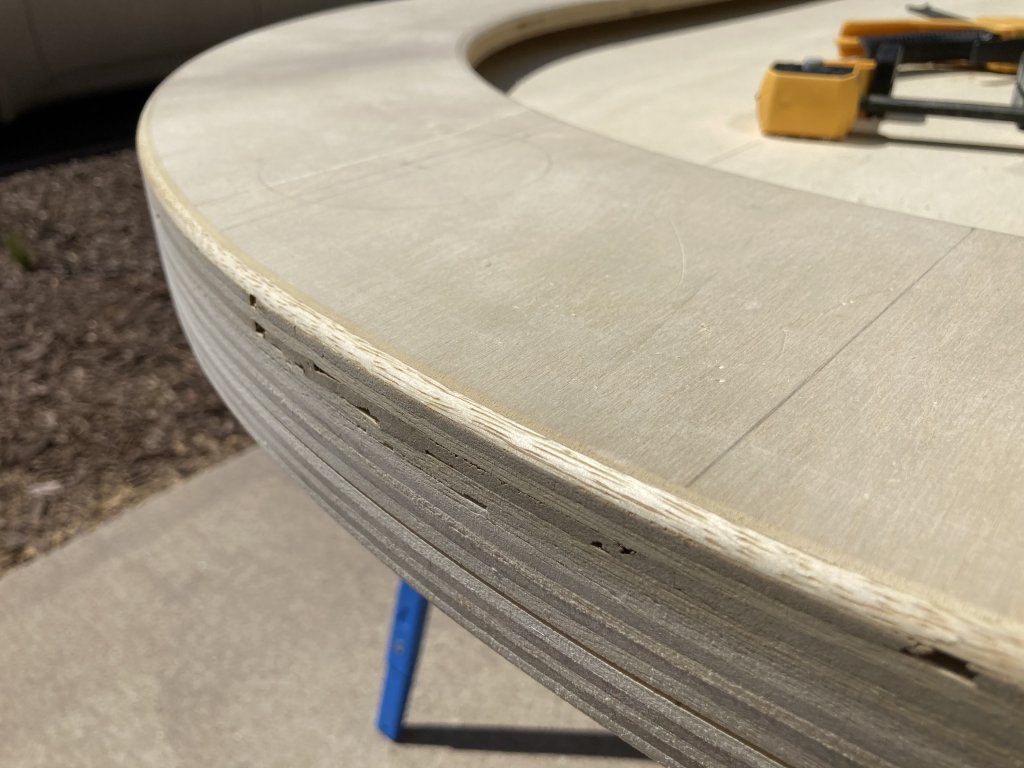

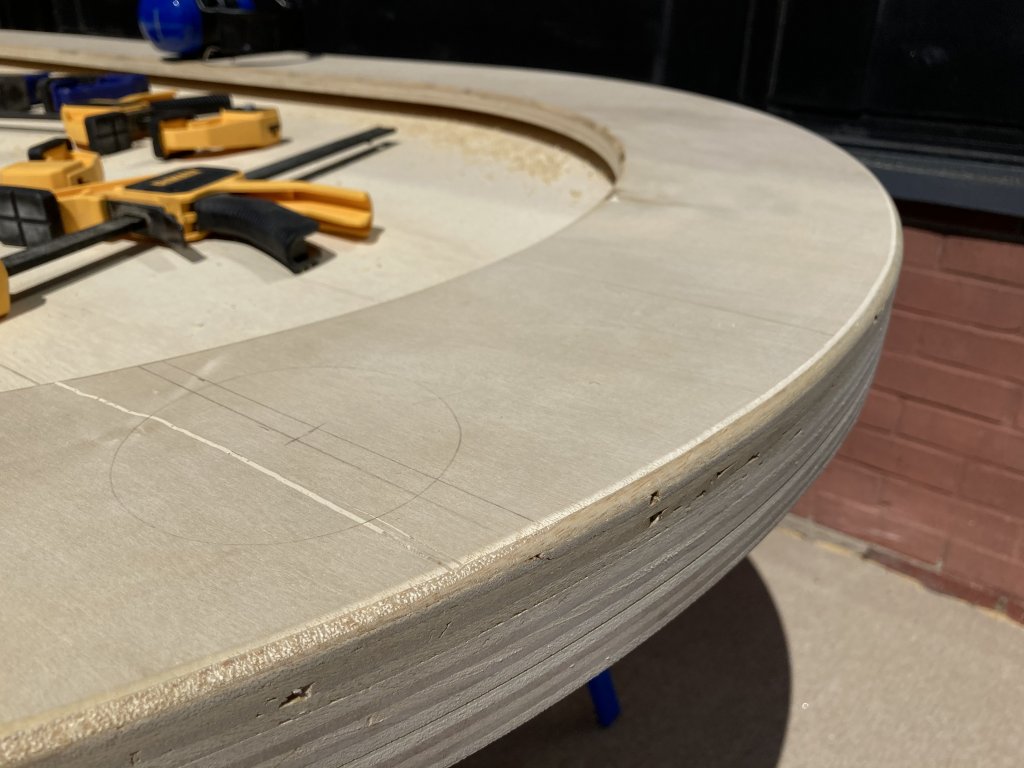

Last piece of banding goes on today. After 24 hours of cure time, I can start making some more noticeable progress...


I didn’t for my first build. For this one I did, just because it’s a different design and I didn’t want to screw it up.
What’s a photographer doing with CAD? :LOL: :laugh:

BTW if you ever have any CAD questions, just ask.

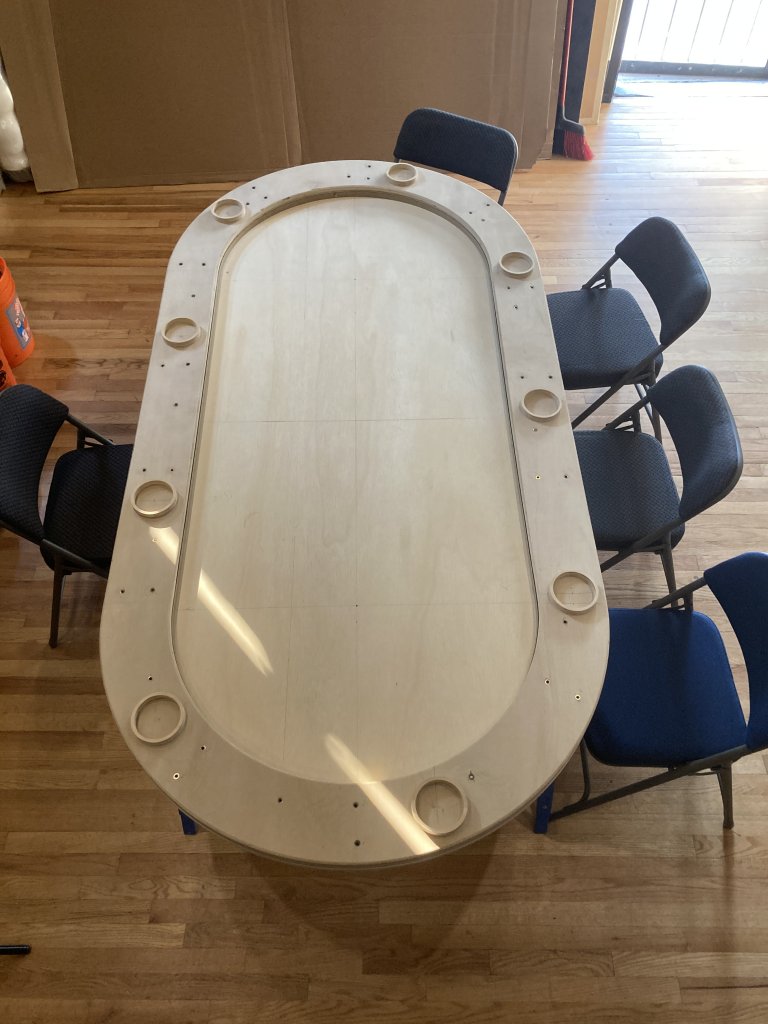

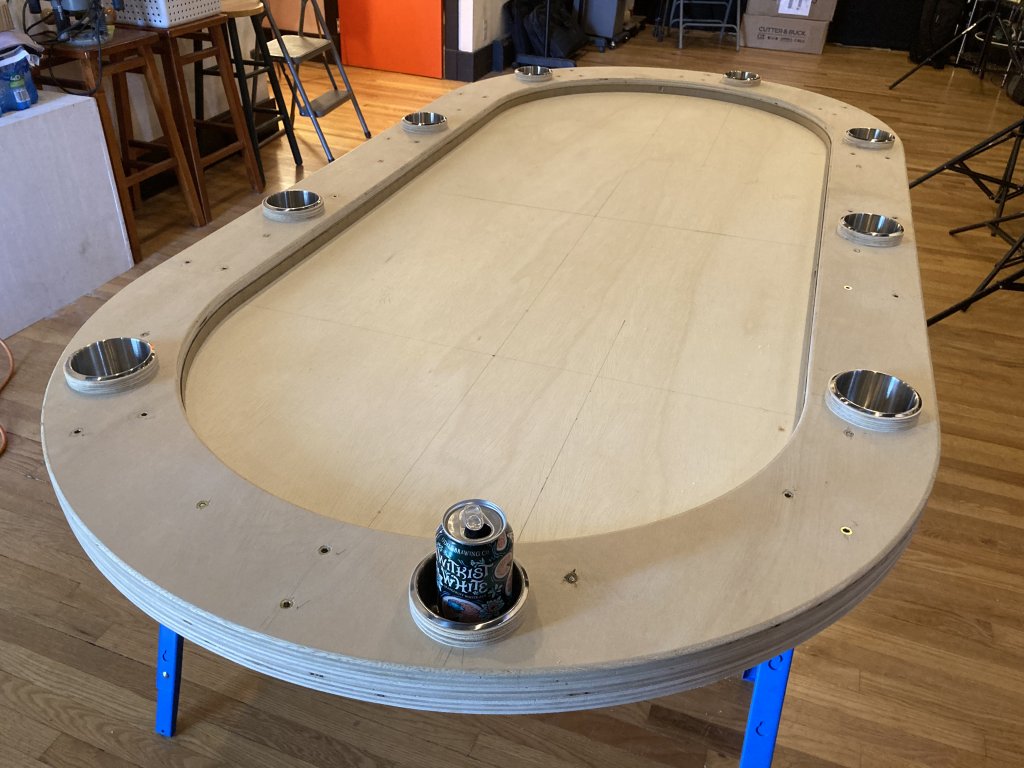

Lots done today! And a first beer test with cupholders.

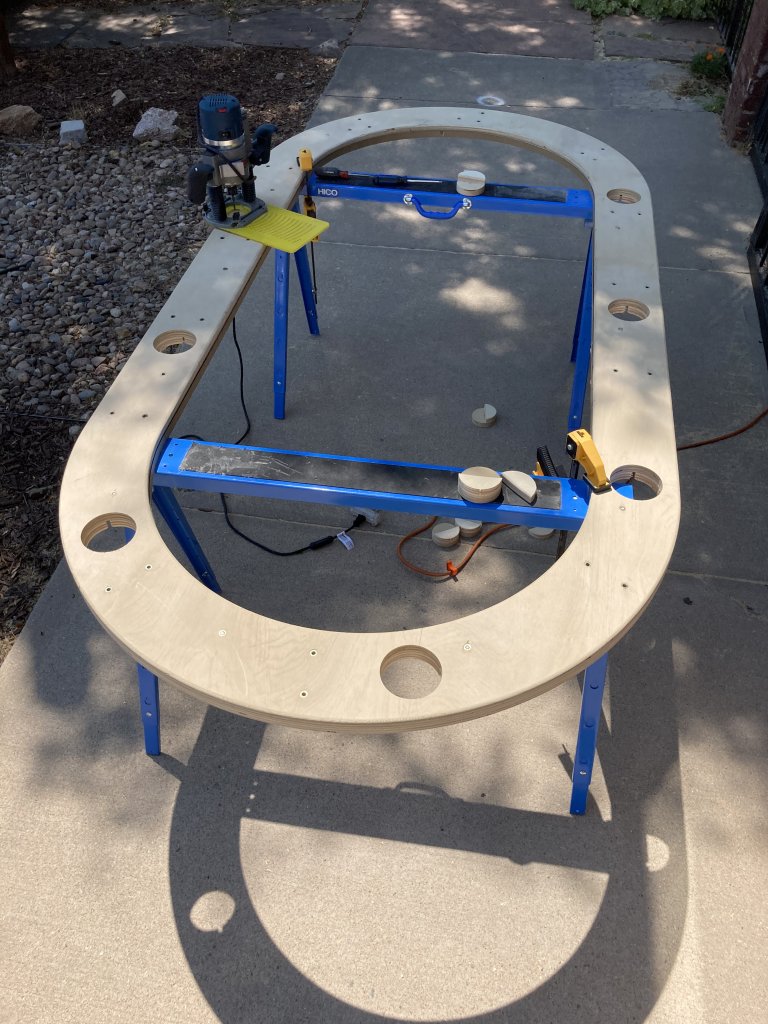

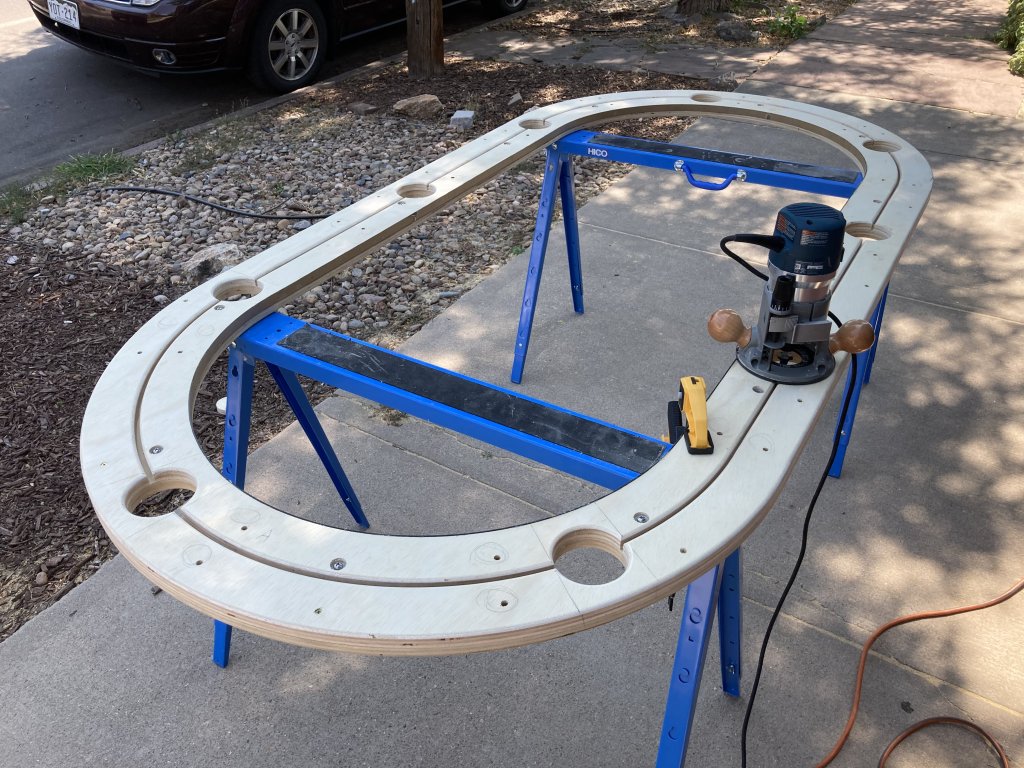

The to-do list keeps getting smaller.... Next up, banding on the main/table edge, gluing/clamping the cup holder rings, and cutting out the mortises for the handles.

After that, it’s on to upholstery!
