Just commenting to see if others have a better way to design chips/edge spots (Tina production intent)... I've opted to make mine in photoshop (yes I know not vector, but I use 1000 pixels/inch to get a fine printing resolution (error of ~.02mm), and CMYK 16bit. That said.. here's what my process has been.. this feel right?
1. Make a blank circle at 43mm (or 39mm) and overlay mold and inlay for reference points, example:
View attachment 1318572
2. Add a angle measurement reference overlay to the chip:
View attachment 1318573

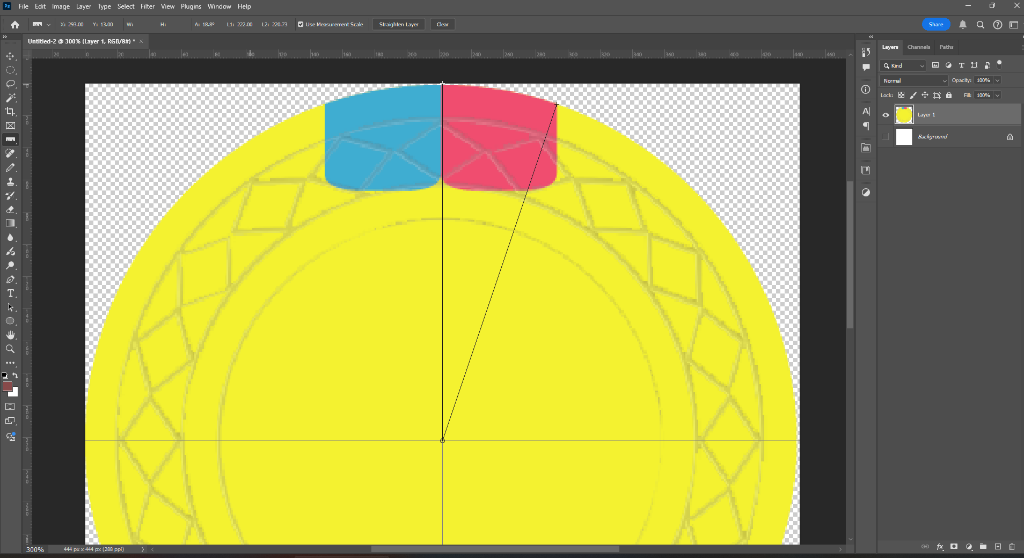

3. Draw on edge-spots on same intervals and align edges to angle measurements:
View attachment 1318574
4. Save without guidelines and inlay design (just base chip/edge spots) and place .psd in illustrator to covert to ai file type
5. Create edge canvas .psd at 3.3mm x 135.09mm (43mm*pi)
View attachment 1318576
6. Make a guidance file to convert angles/location of each chip edge spot on the face to side measurements:
View attachment 1318577
7. Enable the ruler view in mm, and place each edge spot location, then blur the middle portions to get the manufactured/imperfect feel (other methods, but what I chose for this design).
View attachment 1318585
View attachment 1318584
8. Save and place in illustrator similarly to convert to ai file type..
Does anyone see a better method or see any issues?
