New public hybrid mold from Tina 39mm (7 Viewers)

[Colquhoun]

Since we don't really know what either one will look like why not consider Justin's ngm. Are the lines on that mold too shallow, just right or too deep?

I think they are pretty close to just right, but maybe there is an overwhelming majority that think otherwise.

Adjust accordingly

I was speaking of the width of the lines, not the depth...but thats something to consider as well!



[Nanook]

What is the distance between the edge of the chip and that outer concentric circle? Is that the same or similar to that same distance in the THC?

Seems to me THC got it right as everyone loves it



[aildeokl]

Since we don't really know what either one will look like why not consider Justin's ngm. Are the lines on that mold too shallow, just right or too deep?

I think they are pretty close to just right, but maybe there is an overwhelming majority that think otherwise.

Adjust accordingly

Having the Greeks in my hand, I think those are a little too shallow.



[SeanGecko]

Going

What is the distance between the edge of the chip and that outer concentric circle? Is that the same or similar to that same distance in the THC?

Seems to me THC got it right as everyone loves it

It's based off web mold



[Colquhoun]

The issue with going too deep is you get a color shift and it can get blurry. No so much a problem with thin lines, but should be considered.



[Nanook]

So many decisions, right?



[SeanGecko]

After looking at the actual chips I think thin is the safe bet.



[aildeokl]

The issue with going too deep is you get a color shift and it can get blurry. No so much a problem with thin lines, but should be considered.

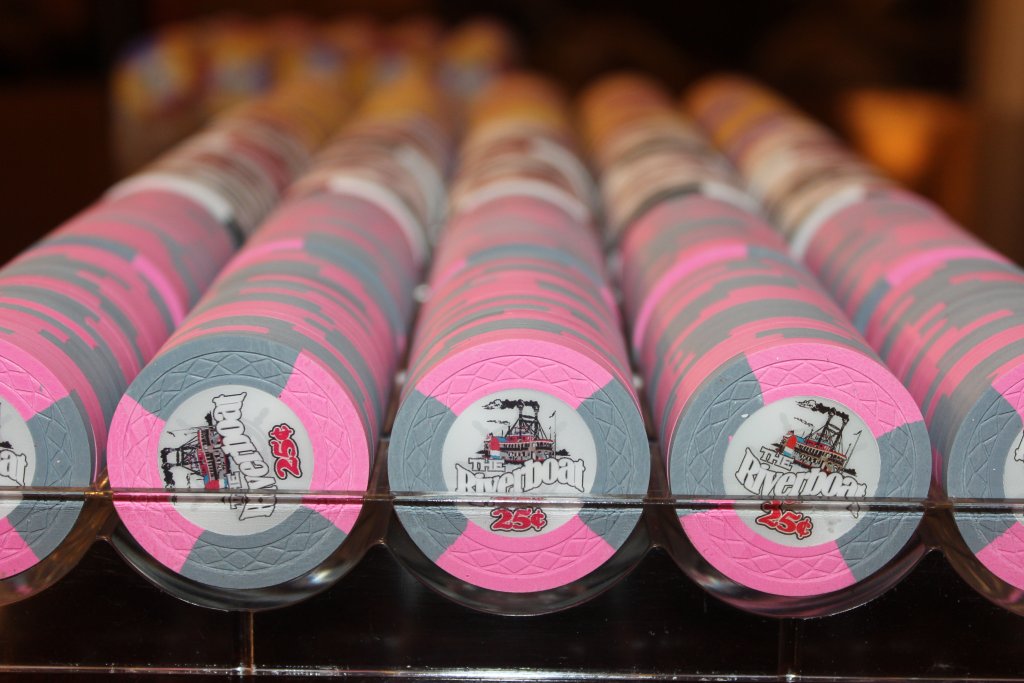

Agreed. What is pictured on the riverboat chips above is good, looks like a better ratio than the Greek chips imo.



[BPTDirector]

Thin would be the preference I’m sure. I have 43mm Greek Key chips and any deeper I would be worried about dark colors not getting all the way down in the crease.



[TheOffalo]

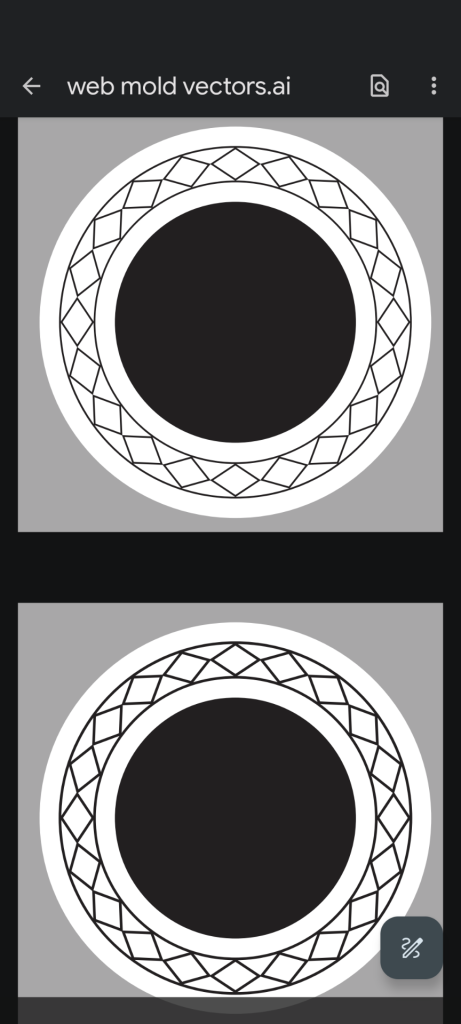

Opinion of n line thickness?View attachment 1234125

I think thicker, or possibly closer. If you look at the real web molds the points where the “diamonds” touch each other, you don’t really get distinct points (at least based on the pictures of the chips).

From the first picture of the most recent mockups, they barely don't touch:

From the second picture of the most recent mockup, they touch but "just the tip":

From my previous mockup, the lines don't look like they're just touching at the corners of the distinct "diamond" shapes, but rather that they are continuous lines of the same width that happen to change directions at the intersections, if that makes sense:

I feel like that's the same on the actual chips, again from what I can tell based on pictures:

It doesn't look like the shapes are separate and just touching but rather are actually continuous and connected with each other, like a ... web?

There may be some slight narrowing (or more likely beveling) as the lines get closer to intersecting:

But not as much as in the two mockups posted earlier.



[Colquhoun]

I think thicker, or possibly closer. If you look at the real web molds the points where the “diamonds” touch each other, you don’t really get distinct points (at least based on the pictures of the chips).

From the first picture of the most recent mockups, they barely don't touch:

View attachment 1234259

From the second picture of the most recent mockup, they touch but "just the tip":

View attachment 1234260

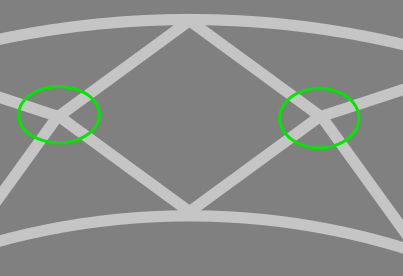

From my previous mockup, the lines don't look like they're just touching at the corners of the distinct "diamond" shapes, but rather that they are continuous lines of the same width that happen to change directions at the intersections, if that makes sense:

View attachment 1234261

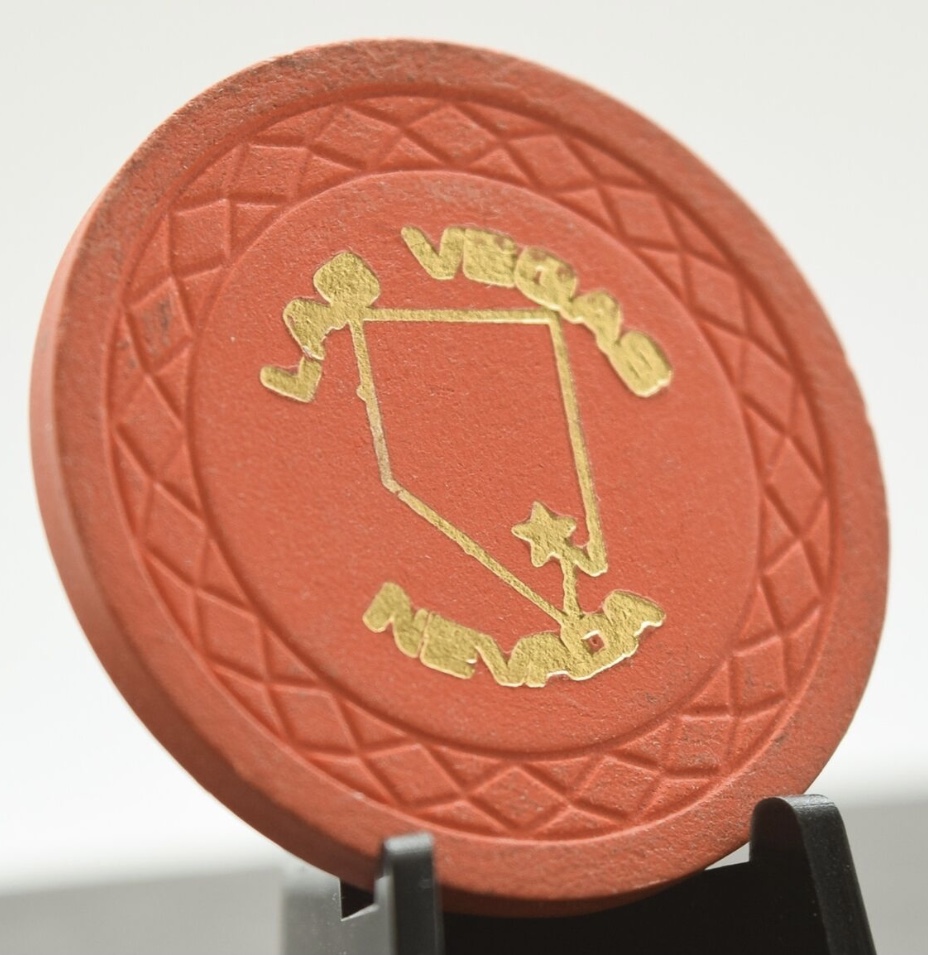

I feel like that's the same on the actual chips, again from what I can tell based on pictures:

View attachment 1234262

It doesn't look like the shapes are separate and just touching but rather are actually continuous and connected with each other, like a ... web?

There may be some slight narrowing (or more likely beveling) as the lines get closer to intersecting:

View attachment 1234263

But not as much as in the two mockups posted earlier.

They do touch in the vector. Just a little more in the thicker lined one.
And the discussion should also include, are we going for an exact duplicate?



[TheOffalo]

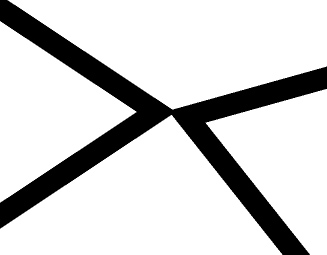

They do touch in the vector. Just a little more in the thicker lined one.
View attachment 1234276
View attachment 1234277

I'm probably not explaining it well enough. In the original web mold, I don't see the lines narrowing (close) to a point as they intersect. The lines are all consistent width. I tried to do that in my previous mockup, so that the lines didn't close in but rather just changed directions at intersections:

They kind of look like roads, now that I think about it.

Even if the "streets" don't line up perfectly, and are offset from each other, the "roads" themselves do not narrow:

So I much prefer the thicker lines, since it makes the entire mold look contiguous, like how they meet the inner and outer concentric circles even in the narrower-line mockup:



[TheOffalo]

And the discussion should also include, are we going for an exact duplicate?

It's personal preference, but I just like the shapes to overlap slightly, so they look like they share lines and not just separate shapes touching. Not specifically advocating for an exact match of the mold.



[SeanGecko]

Should give credit to @Colquhoun for the vector. He did the work!
I just can't decide which one to tell Tina to do. The chip wife needs to know.



[SeanGecko]

Tina is checking which is better for the mold on their end



[aildeokl]

I agree with TheOffalo here. Designing it with the overlap makes it look much more like a web and less like diamonds.



[Colquhoun]

Makes no difference to me, you guys should take it from here.
I only made what I made as a quick example for a mock-up.



[SeanGecko]

Makes no difference to me, you guys should take it from here.
I only made what I made as a quick example for a mock-up.

FINE! JUST LEAVE ME OUR BABY!!!!



[SeanGecko]

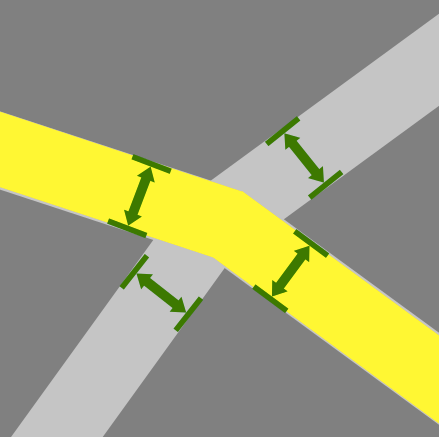

I'm probably not explaining it well enough. In the original web mold, I don't see the lines narrowing (close) to a point as they intersect. The lines are all consistent width. I tried to do that in my previous mockup, so that the lines didn't close in but rather just changed directions at intersections:

View attachment 1234285

They kind of look like roads, now that I think about it.

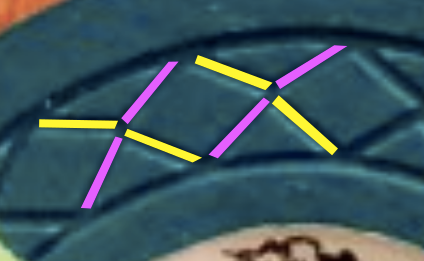

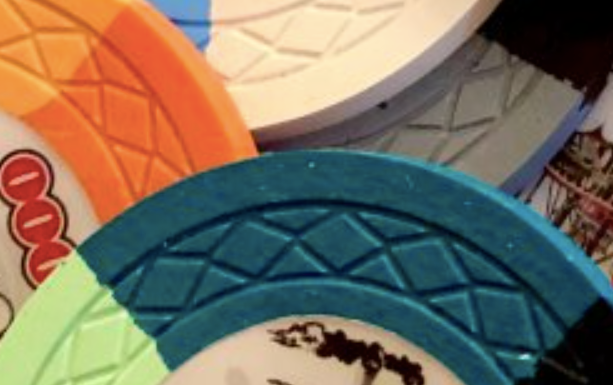

Even if the "streets" don't line up perfectly, and are offset from each other, the "roads" themselves do not narrow:

View attachment 1234290

View attachment 1234289

So I much prefer the thicker lines, since it makes the entire mold look contiguous, like how they meet the inner and outer concentric circles even in the narrower-line mockup:

View attachment 1234292

Okay you're helping me raise this BABY NOW!



[Nanook]

I'm with @TheOffalo on this one.



[andrebttx]

Tina is checking which is better for the mold on their end

Having a stable and consistent quality production is probably more important than minor details anyways - though I do definitely agree with how @TheOffalo laid it out in this thread.



[TheOffalo]

Makes no difference to me, you guys should take it from here.
I only made what I made as a quick example for a mock-up.

You’re not getting away that easy!

FINE! JUST LEAVE ME OUR BABY!!!!

Okay you're helping me raise this BABY NOW!



[SeanGecko]

You’re not getting away that easy!





View attachment 1234509

We need some one with someone editing this pic stat!



[Colquhoun]



[SeanGecko]

99 voters!!!



[SeanGecko]

0.27 mm is too thin we have to go for the 0.35mm



[MrRossKeys]

0.27 mm is too thin we have to go for the 0.35mm

I think .35mm would look better regardless.



[SeanGecko]

0.27 was our original thicker lines FYI



[Nanook]

I took a calipers and measured carefully. Although I was not the one making the artwork I think I am very close. I took this pic for another thread so disregard the river rat chip in the pic. For the new greek mold:
I believe that the distance from the edge of the chip to that outer concentric circle is 1mm
I believe that the thickness of that outer concentric circle is .5mm
and I believe that the thickness of the inner pattern (the greek part) the thickness of the lines are .35mm



[Himewad]

I took this pic for another thread so disregard the river rat chip in the pic.

NEVER disregard the River Rat!
